The convenience of automatic, the efficiency of manual!
Hand in Hand, the Semi-Auto Specialist

Installaion Manual

Semi-Auto system
power clutch

power clutch

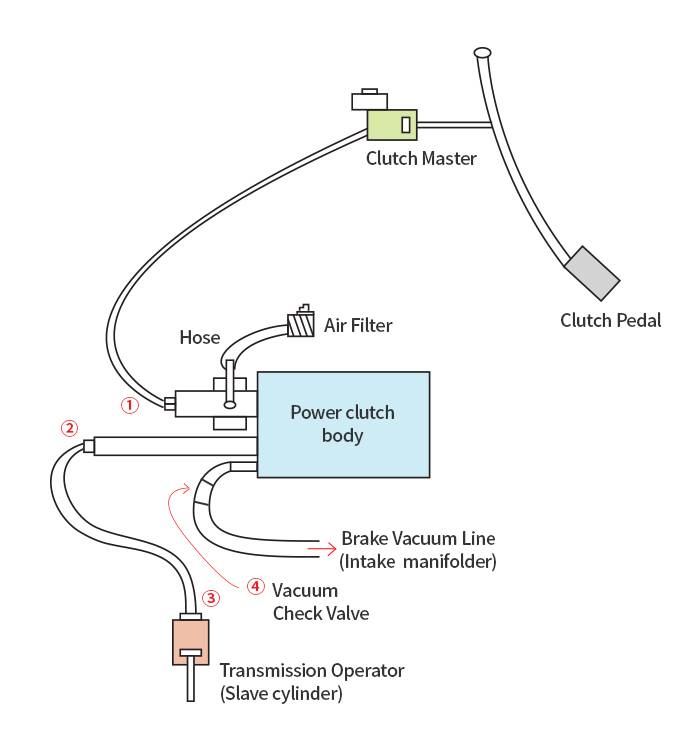

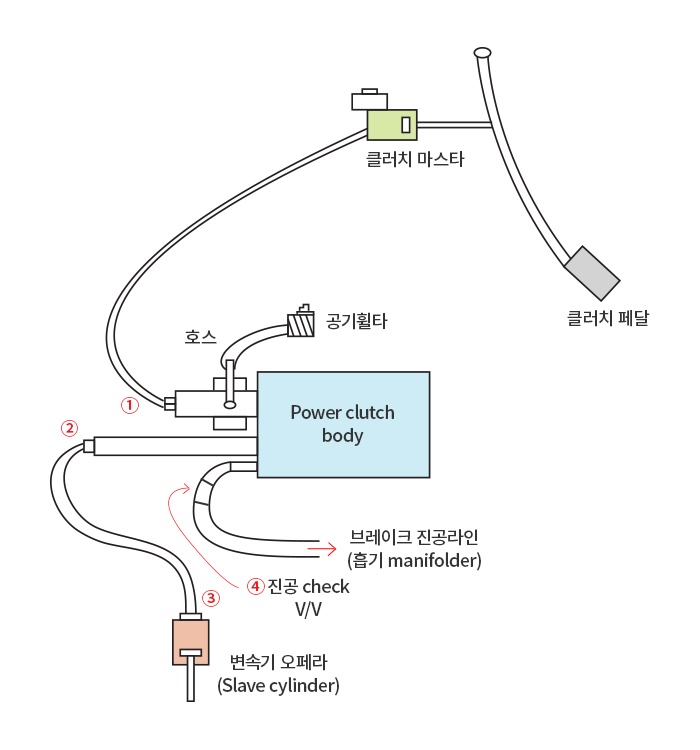

Power Clutch Assembly (Hydraulic Clutch Only)

1. ①,②,③ : 에어 빼주는 곳 (설치 완료 후)

2. Power Clutch Body는 엔진실 빈공간에 설치한다.

3. 에어 브리딩 (Air bleeding) 즉, 공기를 뺄때는 빼는 부분이 하늘을 향하게 한 후 엔진이 꺼진 상태에서 빼야한다.

1. ①, ②, ③ : Air bleeding ports (after installation is completed).

2. Install the Power Clutch body in an empty space in the engine compartment.

3. Air bleeding: When bleeding air, position the bleeding port facing upward and perform the bleeding while the engine is turned off.
